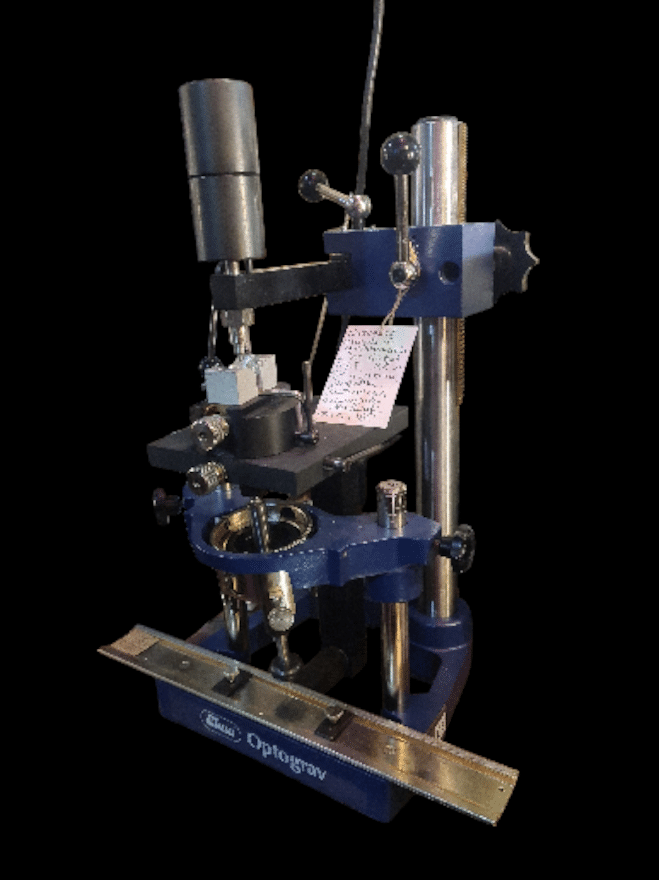

PANTOGRAPH - functional and unused Elma-Optograph engraving machine, 20th century, GDR.
Ships within: 72 hours
🎯 Principle of operation and basic features
Traditional mechanical engraving machines with a pantograph are devices for precise copying of patterns in variable scale. Their heart is a lever system – the pantograph – which mechanically transfers the operator's movements from one point to another.
Key elements of such a machine include:
-
Stylus (pointer): The tip that the operator manually guides along the original pattern (template).
-
Lever system (pantograph): Mechanically reduces or enlarges the movement from the stylus.
-
Engraving head with cutting tool: A burin or graver that exactly replicates the movement of the stylus, carving the pattern into the workpiece (e.g., metal, wood, plastic).
-
Stable base: A rigid construction ensuring the stability of the entire system.
⚙️ Typical applications
Such machines were once commonly used for:
-
Engraving serial inscriptions, logos, and markings on nameplates.
-
Creating decorative patterns on jewelry, weapons, or souvenirs.
-
Making matrices, stamps, and seals.
